FXMA2102L8X
Manufacturer:
On Semiconductor
Mfr.Part #:
FXMA2102L8X
Datasheet:
Description:

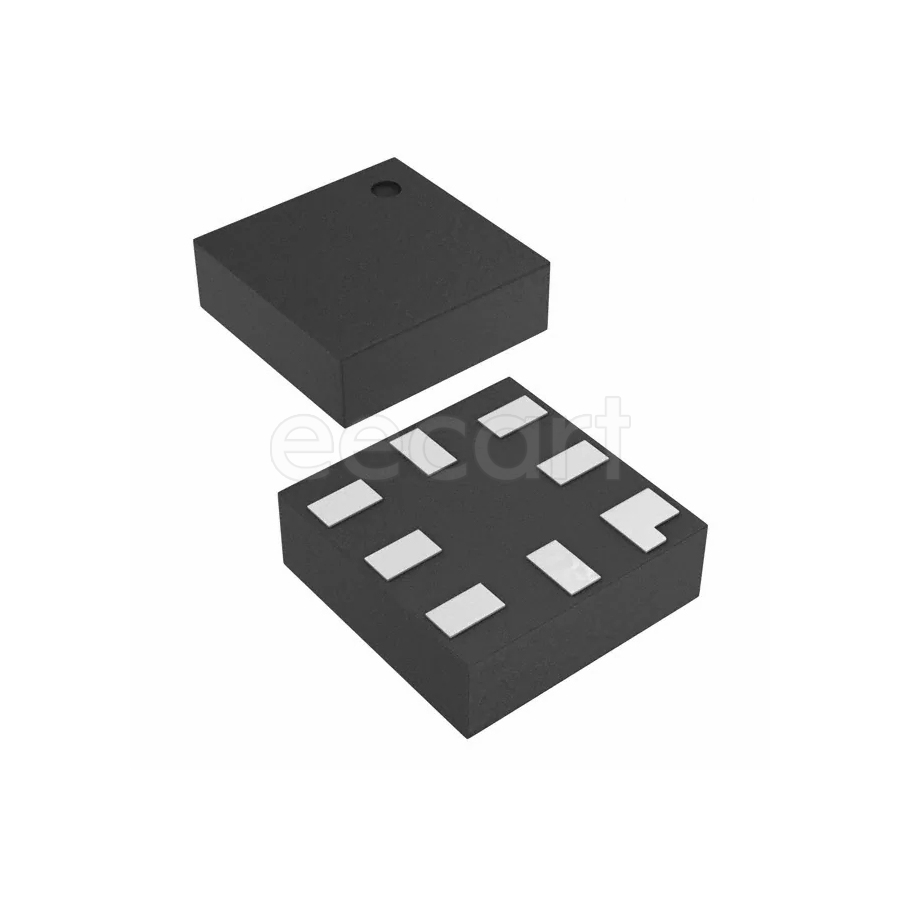

Voltage Level Shifters MicroPak-8 SMD/SMT Voltage
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 500 µm |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 50 MHz |
| Type | Voltage Level |
| Number of Circuits | 1 |
| Output Type | 3-State |
| Max Power Dissipation | 129 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 2 |
| Number of Bits | 2 |
| Turn-On Delay Time | 1 ns |
| Quiescent Current | 5 µA |
| Propagation Delay | 4 ns |
| Low Level Output Current | 6 mA |
| Logic Function | Buffer, Translator |
| Number of Inputs | 2 |
| Number of Outputs | 2 |
| Nominal Supply Current | 2 µA |
| Schedule B | 8542390000 |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.65 V to 5.5 V |
| Voltage - VCCB | 1.65 V to 5.5 V |
Stock: 3021
Distributors
pcbx
pcbxUnit Price$0.35443
Ext.Price$0.35443
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35443 | $0.35443 |
| 10 | $0.27571 | $2.75710 |
| 50 | $0.23693 | $11.84650 |
| 100 | $0.20360 | $20.36000 |
| 500 | $0.17761 | $88.80500 |
| 1000 | $0.16684 | $166.84000 |
